TOMAR's R79 Revolution Series LED DOT Bundle is designed to provide everything you need to add rugged, long-lasting performance to any vehicle build needing DOT-compliant stop, tail, turn, and reverse lamps. These DOT lamps maintain the same durable functionality found in our Revolution Series and give you the option of incorporating a warning light into the third/reverse lamp using our Dual-Mode™ Technology - eliminating the need for an expensive and space-reducing fourth lamp.
All TOMAR DOT lamps meet total light output and optical light dispersion as required by FMVSS standards.
KEY FEATURES
- DOT Compliant Stop, Tail, and Turn Lamps
- Assembled in-house at TOMAR Headquarters in Gilbert, Arizona, USA
- Utilizes TOMAR’s superior Clear Vision Optics™ to maximize light output efficiently
- Hermetically-sealed patented design
- Built with UV-resistant Lexan
- Chrome and Black Bezels available for a finished, professional appearance (see product options)

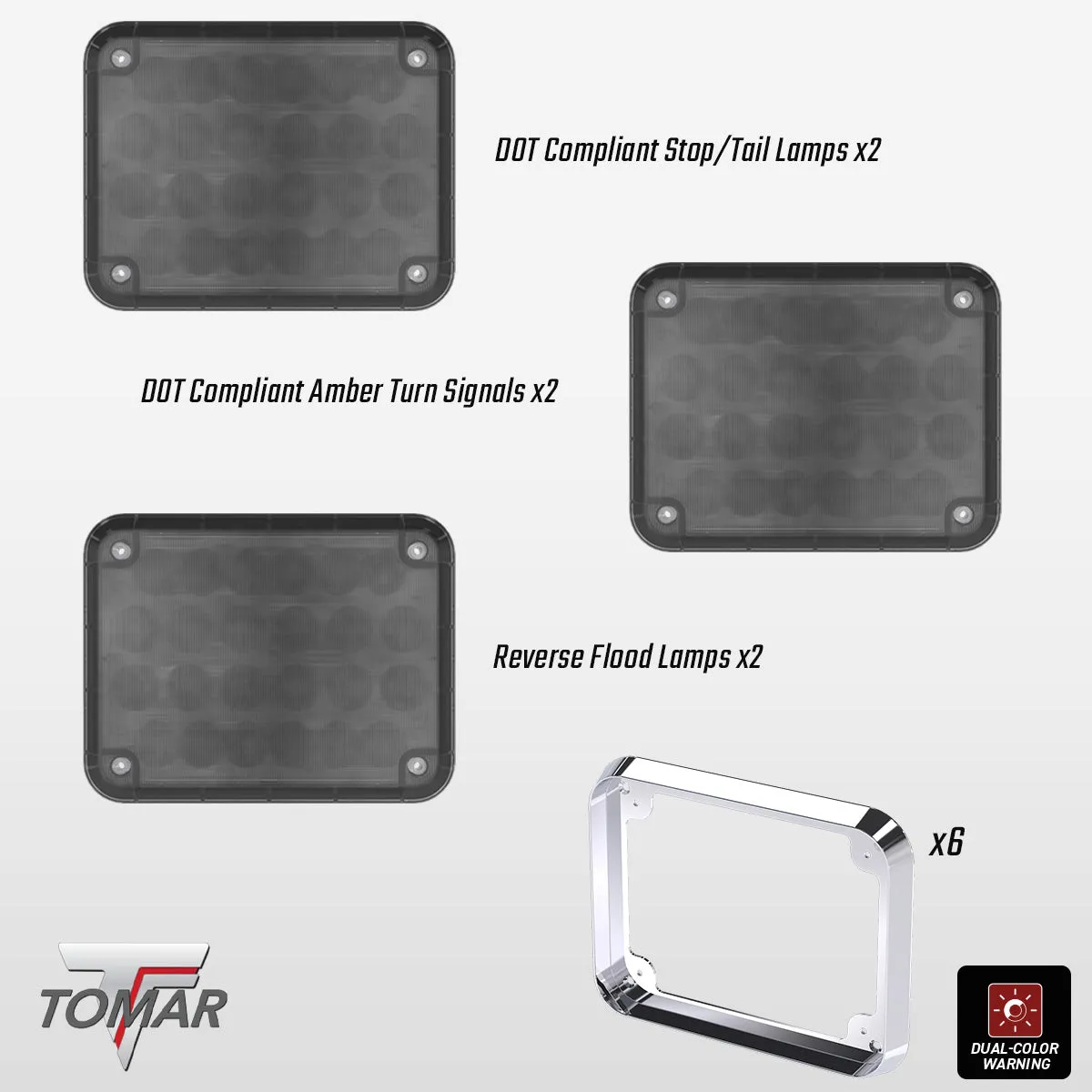

WHAT'S INCLUDED
- (2) x DOT-compliant stop/tail lamps with selectable steady-on or stutter-on stop light activation.
- (2) x DOT-compliant amber turn signals.
- (2) x 13-Degree down-angled white reverse flood lamps OR optional Dual-Mode Warning Lamp Function (Dual-Mode Lamps provide lower Zone C warning and white reverse lamps in one lamp and shine horizontally/not angled down).
- (6) x Individual bezels with all required body-seal gaskets, in either Black or Chrome.
SPECS PER LIGHT (R79)
- Lamp Dimensions: 9.125"w x 4.16"h x 1.09"d
-
Bezel Dimensions: Single Bezel (R79-BZ/R79-BZ-B):
9.95” long x 7.95” wide x .90” thk - Amp Draw: @12.8VDC
- Steady-on Lamps: 3.14 Amps
- Warning Lamps: 1.57 Amps
- R79L-STT: Stop Mode = 3.75 Amps / Tail Mode = 0.23 Amps
- R79L-TURN: Flashing = 1.1 Amps
- Number of LEDs: 24 LEDs
NFPA 1900 Cumulative Lamp Totals Candela Seconds per Minute (Warning Lights):
| Model | Single | Double | Neobe |
|---|---|---|---|
|
R79L-W-A |
965,475 | 482,738 | 675,833 |
|
R79L-W-B |
628,845 | 314,423 | 440,192 |
|
R79L-W-R |
1,504,597 | 752,299 | 1,053,218 |
|
R79L-W-W |
2,069,700 | 1,034,850 | 1,448,790 |
|
R79LD-W-A |
882,525 | 441,263 | 617,768 |
|
R79LD-W-B |
596,602 | 298,301 | 417,621 |
|
R79LD-W-R |
742,650 | 371,325 | 519,855 |
|
R79LD-W-W |
1,766,100 | 883,050 | 1,236,270 |
